The HONEMIX FSM-S Steam Shrink Tunnel Machine is designed for businesses that need clean, tight, and consistent shrink packaging across a wide range of products. It combines steam heating, stable conveying, and controlled film shrinking in one compact unit, helping manufacturers improve packaging finish, line efficiency, and presentation quality.
Unlike conventional hot air systems, this steam shrink tunnel uses more uniform heat distribution to reduce localized overheating, minimize film deformation, and achieve a smoother final wrap on cartons, bottles, gift packs, and other retail or transit packaging.
| Quantity: | |
|---|---|
FSM-S
HONEMIX

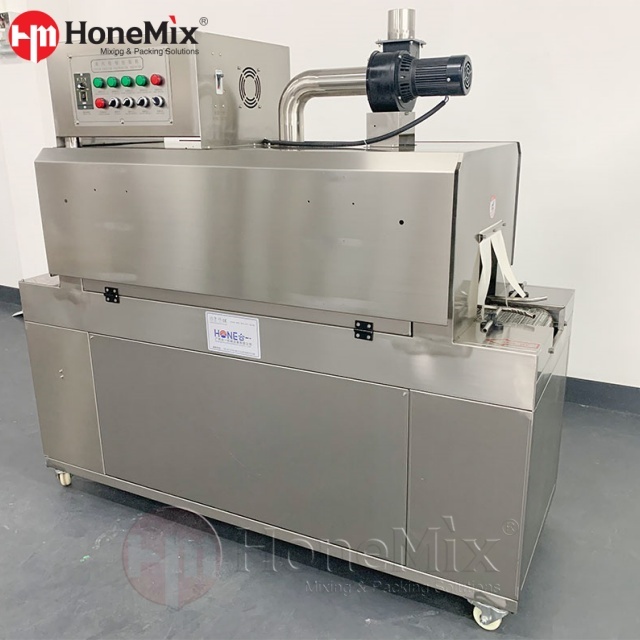

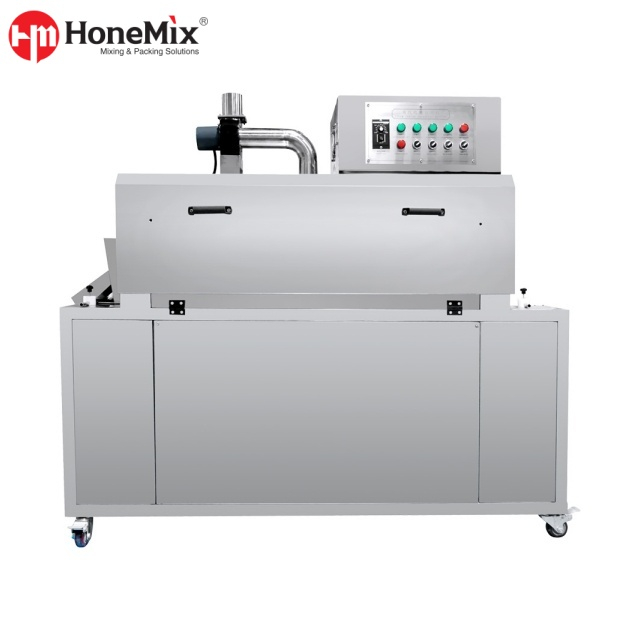

The FSM-S 400×200 Steam Heating Film Shrinking Tunnel is an automated packaging machine developed for film shrinking applications that require stable heat, neat appearance, and repeatable packaging results. The source page lists an adjustable conveyor speed of 0–15 m/min, a steam generator heating system, 18 kW power, tunnel size of L1300 × W200 × H200 mm, and overall dimensions of 1700 × 790 × 1600 mm. It is presented for use with PVC, PP, POF, and PE shrink materials.
The value of this steam shrink tunnel is not only the finished look of the package, but also the consistency it can bring to repeated production runs. Uniform steam heating supports better shrink quality across different product shapes, while adjustable transport speed makes it easier to optimize throughput and packaging performance.
This model is especially suitable for manufacturers and packaging lines that want to improve final pack appearance without sacrificing operational simplicity. It is a strong fit for buyers seeking packaging consistency, reduced rework, and a machine that can be adapted to different product sizes and packaging requirements.

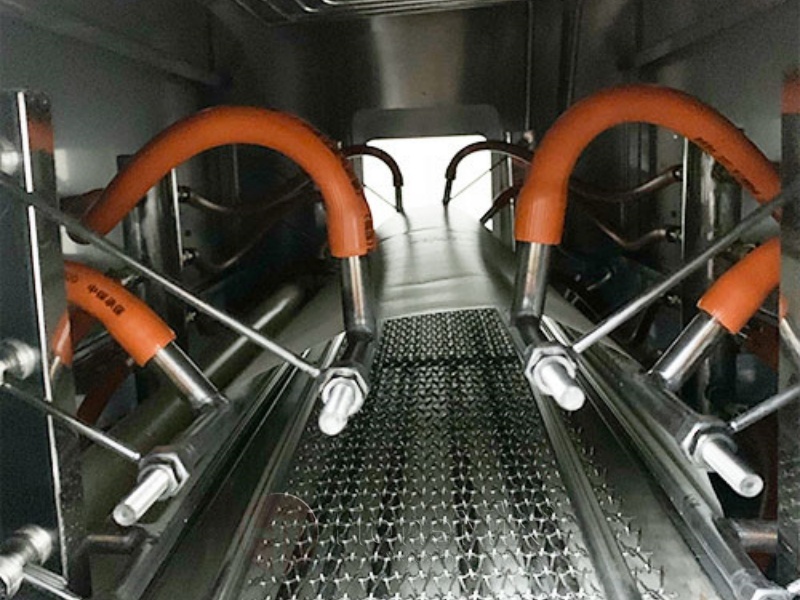

The machine is built around a steam generator heating system, which as an advantage over hot air systems because steam provides more uniform heat distribution. This helps reduce localized overheating and supports tighter, cleaner, wrinkle-free film shrink results.
The listed conveyor speed is adjustable from 0 to 15 m/min, allowing operators to match shrink time and output pace to product size, film type, and line conditions. This is important for buyers who need a steam shrink tunnel machine that can handle varying packaging speeds without replacing equipment.
The PVC, PP, POF, and PE as compatible packing materials. It offers greater flexibility when matching shrink tunnels with existing packaging materials, budget targets, or downstream retail packaging requirements.
The frame is constructed of 304 corrosion-resistant steel and features a durable PU conveyor belt that is easy to clean and replace. This contributes to increased durability, ease of daily cleaning, and reduced maintenance burden.

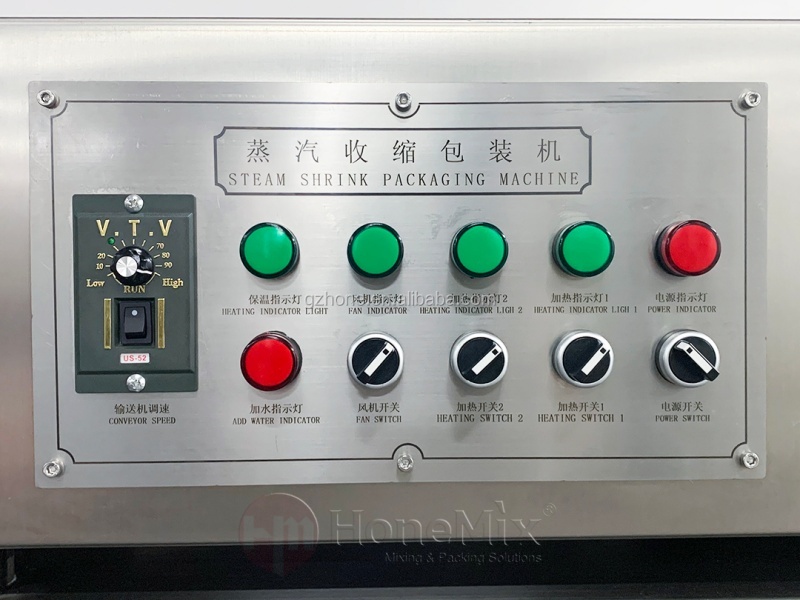

The machine can be equipped with a PLC control system and 7-inch touchscreen for one-click parameter adjustment and real-time monitoring of steam pressure, temperature, and conveyor speed, along with alarm prompts for low water level or abnormal pressure. This supports easier operation, faster setup, and more stable day-to-day production control.
This compact machine integrates steam generation, conveying, and shrinkage functions into one unit. This makes it ideal for workshops and packaging lines where space requirements, layout efficiency, and ease of equipment integration are critical.
Industry | Suitable Products / Packaging Uses |
|---|---|
Food | Bottled sauces, canned fruits, frozen food boxes, and grouped retail packs. |
Electronics | Chargers, earbuds, smart accessory packs, and small appliance bundles. |
Retail & Logistics | Gift boxes, corrugated box bundling, promotional packs, and transit-ready shrink packaging. |
Pharmaceutical | Non-sterile medical device kits, test strip boxes, and outer packaging for moisture protection. |
Cosmetic & Personal Care | Skincare boxes, cosmetic gift sets, bundled cartons, and secondary shrink packaging. This is a reasonable extension from the listed gift box and retail packaging use cases. |
Item | Specification |
|---|---|
Model | FSM-S |
Brand | HONEMIX |
Machine Type | Steam Heating Film Shrinking Tunnel |
Conveyor Speed | 0–15 m/min, adjustable |
Compatible Films | PVC, PP, POF, PE |
Heating System | Steam generator |
Power | 18 kW, customizable |
Shrinking Tunnel Size | L1300 × W200 × H200 mm |
Machine Dimensions | 1700 × 790 × 1600 mm |
Frame Material | 304 stainless steel (described in features section) |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Option | Benefit |
|---|---|
Customized Power Configuration | Customizable power, helping align the machine with local utility conditions and production demand. |
PLC + Touchscreen Control | Supports easier parameter setting, monitoring, and operating convenience. |
Alarm and Monitoring Functions | Helps reduce manual oversight and improve operating safety. |
Conveyor and Line Matching | Adjustable speed makes it easier to integrate with upstream feeding or downstream packing processes. This is an operational inference from the speed control and tunnel format. |
Film and Product Adaptation | Suitable for different film types and product formats to support varied packaging tasks. |
1. What films can this steam shrink tunnel use?
This model is listed for PVC, PP, POF, and PE shrink materials, making it suitable for many standard shrink packaging applications.
2. What is the conveyor speed range?
The conveyor speed is listed as 0–15 m/min and adjustable, allowing better control over shrink results and packaging throughput.
3. What heating system does the machine use?
It uses a steam generator heating system, which the source page describes as providing more uniform heat distribution than conventional hot air systems.
4. Is the machine suitable for irregular or different-sized products?
Yes. It is suitable for goods of various sizes, and it can handle irregularly shaped products with uniform shrinking support.
Looking for a steam heating film shrinking tunnel that delivers cleaner packaging, stable shrink performance, and flexible line integration? Contact HONEMIX to discuss your product size range, film type, output target, and customization requirements, and get a packaging solution matched to your production needs.
