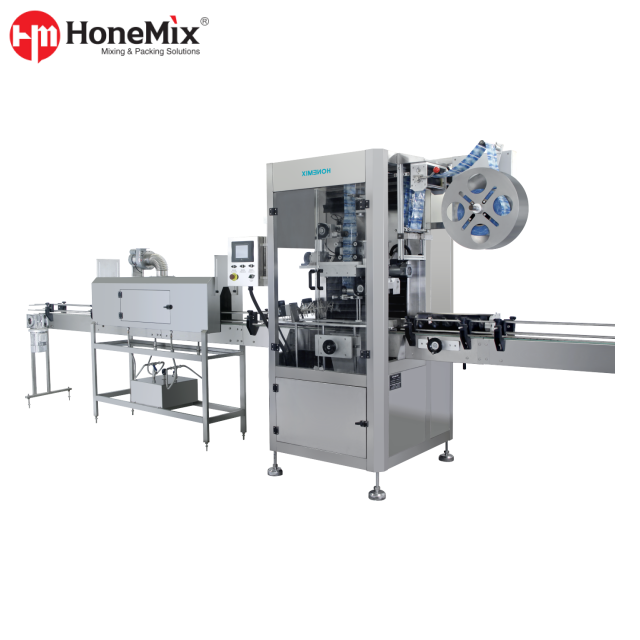

The HONEMIX HY-TBM Automatic Shrink Sleeve Applicator for Cans is designed for manufacturers that need faster sleeving, more stable packaging quality, and a cleaner finished appearance for canned products. This equipment is built for automated sleeve insertion and steam shrinking on can packaging lines, helping reduce manual labor while improving sleeve alignment and packaging consistency.
The value is practical: better product consistency, improved production efficiency, easier integration with existing lines, and a more professional retail presentation for food, beverage, chemical, and pet food cans.
| Quantity: | |
|---|---|
HY-TBM
HONEMIX
The most accurate high-conversion positioning for this product is an automatic shrink sleeve applicator for cans with steam shrinking, rather than a general film wrapping machine. It is an automated device used to attach protective or decorative sleeves to cans, employing servo-driven feeding and steam shrink tunnels to achieve a consistent final appearance.
This makes the machine suitable for buyers who need reliable can sleeving for branding, protection, and shelf presentation while also reducing manual intervention. It is suitable for food, beverage, chemical, and pet food can production lines.
The system uses 3 servo motors to control feeding, insertion, and pressing. This helps maintain smoother motion control, stable output, and better repeatability across different production speeds.
The labeling speed is 100 bpm.
The machine includes a vacuum suction system that separates sleeves one by one to avoid overlapping and jamming. This is the relevant vacuum function for this equipment and is directly tied to stable sleeve feeding and reduced insertion errors.
The photoelectric and pressure sensors detect missing sleeves, misaligned cans, and loose sleeves, and the system can automatically reject defective products. The rejection rate is below 0.1%, supporting more consistent packaging quality.
A new can size can typically be adjusted in 15 minutes through tool-less guide rail adjustment, hand knobs, and quick-change clips. This is a strong commercial benefit for factories running multiple SKUs.
The system includes a steam shrinking tunnel with a listed steam pressure of 5 kg/cm², helping achieve a tighter sleeve fit and a more polished finished package. This supports better shelf presentation and stronger brand display.
Industry | Suitable Products | Buyer Value |
|---|---|---|
Food | Canned meat, canned fish, canned vegetables | Better sleeve protection, cleaner branding, improved product consistency |
Beverage | Beer cans, energy drink cans, coffee cans | Stronger shelf appeal and full-body sleeve presentation |
Chemical | Paint cans, adhesive cans, solvent cans | Protective sleeving and clearer product identification |
Pet Food | Dog food cans, cat food cans | Consistent branding and improved label display |
Item | Specification |
|---|---|
Model | HY-TBM |
Brand | HONEMIX |
Equipment Type | Automatic can sleeve inserting machine with steam shrink tunnel |
Capacity / Speed | Main spec section: 100 bpm; feature section: 100–300 cans/min |
Control System | 3 servo motors, touchscreen HMI, photoelectric and pressure sensors |
Positioning Accuracy | ±0.5 mm |
Sleeve Insertion Success Rate | 99.9% |
Rejection Rate | <0.1% |
Main Machine Power Supply | AC220V, 50/60Hz |
Main Machine Power | 3 kW |
Main Machine Size | 2400 × 9500 × 2500 mm |
Main Machine Air Consumption | 50 kg/hr |
Steam Tunnel Power Supply | AC220V, 50/60Hz |
Steam Tunnel Power | 0.75 kW |
Steam Tunnel Size | 2000 × 400 × 2100 mm |
Steam Tunnel Air Consumption | 35 kg/hr |
Steam Pressure | 5 kg/cm² |
Can Diameter Range | Main spec section: 30–85 mm; feature section: 52–108 mm |
Can Height Range | 80–200 mm |
Can Material Compatibility | Tinplate and aluminum cans |
Can Wall Thickness | 0.15–0.3 mm |
Label / Sleeve Length | 40–240 mm |
Film Thickness | 0.035–0.082 mm |
Sleeve Materials | Paper, PET, PP, paper-plastic composite, aluminum-plastic composite |
Sleeve Material Thickness | FAQ section: 0.1–0.5 mm overall; plastic listed as 0.05–0.1 mm |
Speed Adjustment Range | 500–1500 rpm |
Noise Level | ≤65 dB |
Changeover Time | Approx. 15 minutes |
Conveyor Interface | Width 200–400 mm; height 750–850 mm |
Heating Method | Steam shrinking tunnel |
Homogenizing Performance | Not applicable for this packaging machine |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
HONEMIX positions itself as a manufacturer focused on R&D, production, sales, and after-sales service for machinery used in cosmetics, food, and pharmaceutical industries. The company homepage also emphasizes customized development, quality control, intelligent manufacturing, modular solutions, and responsive service support.
100 bpm in the main specification block and 100–300 cans/min in the features section. In practice, final speed should be confirmed according to can diameter, can height, sleeve specification, and line integration conditions.
The machine works with paper, PET, PP, paper-plastic composite, and aluminum-plastic composite sleeves. For high-moisture environments, plastic or composite sleeve materials are recommended.
The changeover typically takes about 15 minutes, using tool-less guide rail adjustment, hand knobs, and quick-change clips. This is well suited for factories with multiple can formats.
Yes. The machine has a standard conveyor interface of 200–400 mm width and 750–850 mm height, and it can synchronize with upstream equipment through linked signals for coordinated start and stop.
No. This is a packaging machine, not a mixing or emulsifying machine. Its vacuum-related function is the vacuum sleeve separation system used for stable feeding, and homogenizing performance is not applicable.
If you are looking for an automatic shrink sleeve machine, shrink sleeve applicator for cans, or can sleeve labeling machine for your food, beverage, chemical, or pet food line, send HONEMIX your can dimensions, sleeve size, target speed, and current line layout. That is the fastest way to get an accurate machine recommendation, technical confirmation, and quotation.
