Toothpaste Production Line Configuration
From Raw Materials to Finished Toothpaste Tubes

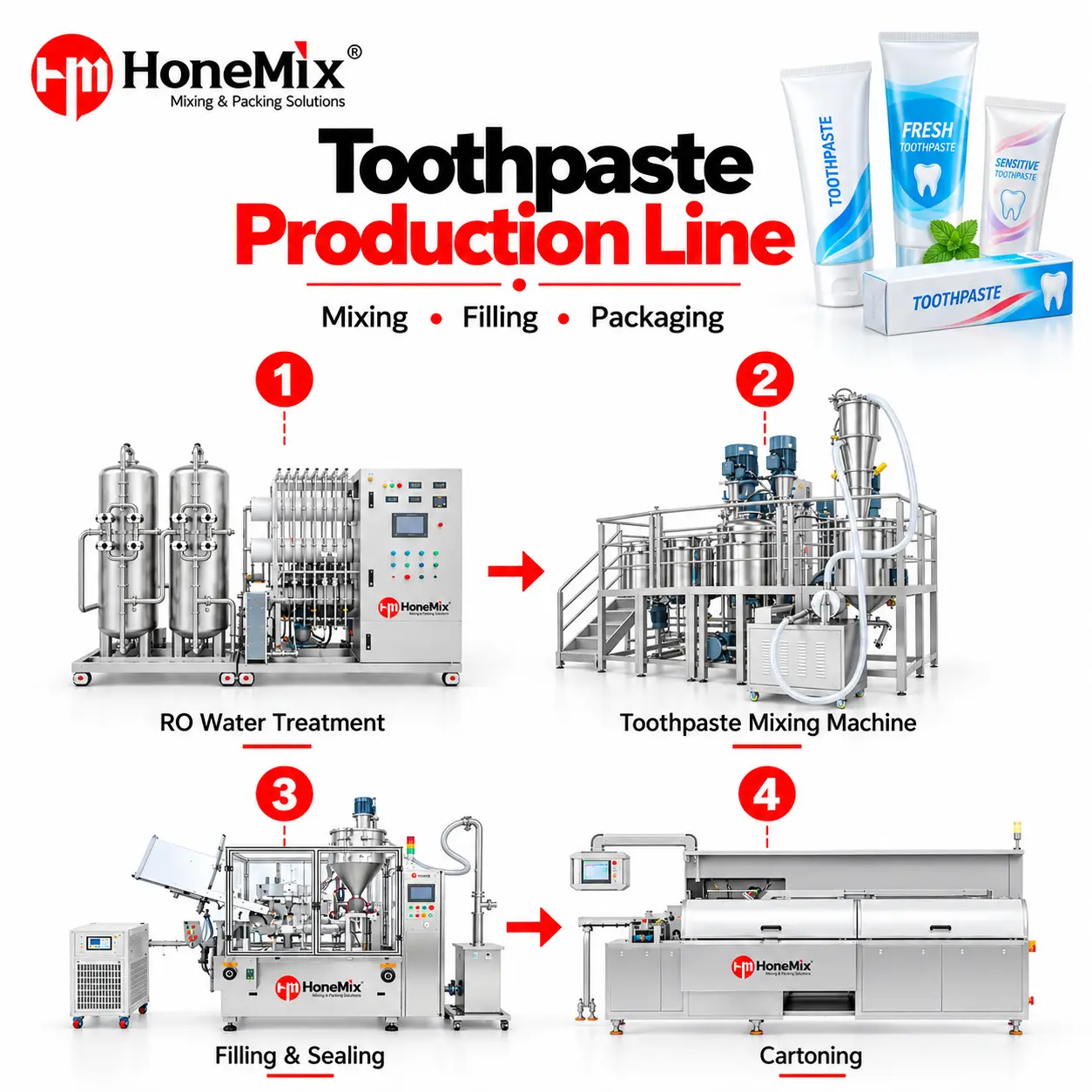

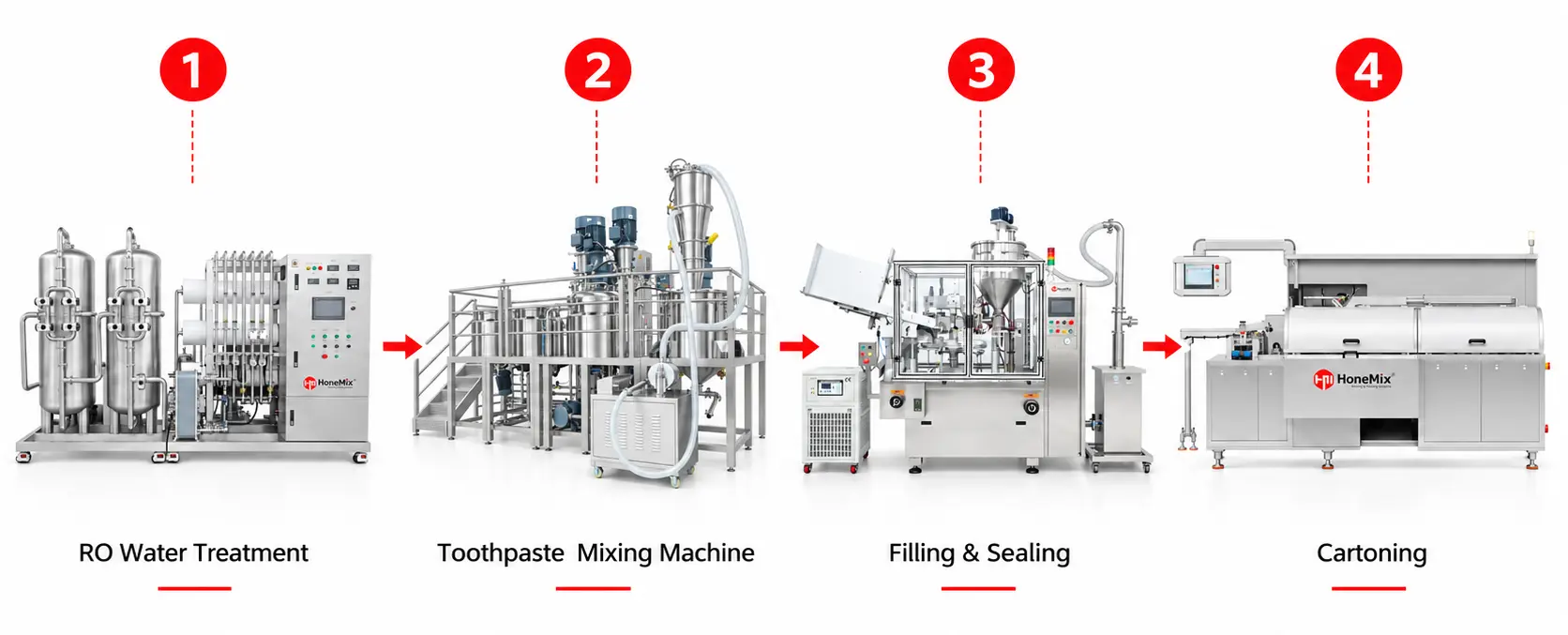

A complete toothpaste production line connects ingredient preparation, vacuum mixing, paste transfer and packaging into a coordinated manufacturing process. HONEMIX selects the equipment according to the required batch capacity, tube format and packaging output.
1. Water Preparation (①)
HRO Reverse Osmosis Water Treatment
2. Toothpaste Mixing & Processing (②)
HTM-FC Integrated Vacuum Toothpaste Making System
OR HTM-FC Integrated Toothpaste Making System
3. Paste Transfer & Holding
HST-SLP Sealed Storage Tank (Optional)
4. Tube Filling & Sealing (③)
HY-A400 Automatic Tube Filling & Sealing Machine
OR Filling & Sealing Machines with Different Production Speeds
5. Secondary Packaging (④)
HY-ZHJ-120 Automatic Cartoning Machine
6. Optional Overwrapping
HY-330A Automatic Cellophane Overwrapping Machine
Transfer pumps, piping, conveyors, feeding systems and other accessories are selected according to toothpaste viscosity, production capacity and the approved line configuration.
Toothpaste Production Line Process Equipment
Toothpaste Production Line Equipment
HONEMIX supplies the key machinery required to establish or expand a toothpaste manufacturing line. Each processing and packaging stage can be configured separately or integrated into a complete system.
HRO Reverse Osmosis Water Treatment
Process Water Preparation
Supplies treated process water for toothpaste manufacturing, with single-pass or double-pass RO configurations selected according to water quality and production demand.
HTM-FC Vacuum Toothpaste Making System
100–5,000 L | Integrated Batch Processing
A fixed production system for industrial toothpaste manufacturing, with configurable preparation vessels, powder feeding, vacuum processing and controlled paste discharge.
HTM-H Vacuum Toothpaste Mixer
50–500 L | Hydraulic Lifting
A flexible mixing system for smaller production batches and multiple formulations, with hydraulic lifting access for cleaning, inspection and changeovers.
Paste Storage & Transfer System
Optional Buffer Holding | High-Viscosity Transfer
Connects the mixing system to the tube filler through a suitable paste pump and transfer arrangement. A sealed holding vessel, including a suitably configured HST-SLP, can be considered where batch buffering is required.
HY-A400 Automatic Tube Filling & Sealing Machine
50–60 Tubes/Min | Automatic Packaging
Handles automatic toothpaste tube feeding, filling, sealing, coding and discharge. Tube-contact components and sealing equipment are specified for the selected packaging material and dimensions.
HY-ZHJ-120 Automatic Cartoning Machine
60–80 Cartons/Min | Retail Cartoning
Automatically opens cartons, inserts finished toothpaste tubes and closes the cartons, with optional leaflet insertion and batch coding.
Engineered for Your Production Capacity
A well-configured toothpaste manufacturing line must account for both batch production capacity and the operating speed of downstream packaging equipment.
BATCH CAPACITY
Right-Sized Toothpaste Processing
Mixer capacity is selected according to toothpaste volume per batch, processing cycle, planned shifts and daily production requirements. Multiple batches or additional mixing vessels can support higher output.
PASTE TRANSFER
Consistent Supply to the Filler
Pump capacity, piping and optional buffer storage are matched to toothpaste viscosity and filling demand, helping maintain product supply between processing and packaging.
PACKAGING THROUGHPUT
Coordinated Filling & Cartoning
Tube filling, carton handling and optional overwrapping are matched by operating speed, package dimensions and transfer requirements to reduce downstream bottlenecks.
CHANGEOVER REQUIREMENTS
Configured for Your Product Range
Tube diameter, filling volume, sealing method and carton dimensions are reviewed before equipment selection to accommodate the intended packaging formats and changeover schedule.
Project Engineering & Support
As a machinery manufacturer, HONEMIX supports toothpaste production projects with coordinated equipment planning and manufacturing services.
1. Equipment Configuration
A recommended machinery list, processing capacity, packaging options and itemized quotation based on project requirements.
2. Production Line Layout
Equipment dimensions, arrangement drawings, material flow and main utility connections for the approved layout.
Equipment inspections, functional testing and factory acceptance tests (FAT) arranged according to the agreed project scope.
4. Installation & Commissioning Guidance
Operating documentation, installation instructions, technical support and commissioning assistance as specified in the supply agreement.
Individual machines, processing sections and complete toothpaste production lines are available.
Frequently Asked Questions
1. What machines are included in a complete toothpaste production line?
A complete line typically includes process water treatment where required, a vacuum toothpaste mixer, paste transfer equipment, an automatic tube filling and sealing machine, and optional cartoning and overwrapping equipment. The exact scope depends on factory requirements.
2. How do I choose the production capacity of a toothpaste manufacturing line?
Start with the required number of finished tubes per shift, tube filling weight and available production hours. HONEMIX then evaluates batch size, mixing cycle, paste transfer and packaging speed to recommend suitable equipment capacities.
3. Can one production line handle different toothpaste tube sizes?
Yes. Automatic tube filling systems can be equipped with suitable change parts for different tube diameters, lengths and filling volumes. The supported range and changeover requirements are confirmed during machine selection.
4. Is a storage tank required between toothpaste mixing and filling?
Not always. Toothpaste can be transferred directly from a suitable mixing system to the filler. Buffer holding is considered when processing cycles, filling schedules or factory layouts require an intermediate supply stage.
5. Can HONEMIX supply only the toothpaste packaging section?
Yes. HONEMIX can supply tube filling, sealing, cartoning and overwrapping machines for manufacturers upgrading an existing production facility.
6. How much does a complete toothpaste production line cost?
The quotation depends on batch capacity, mixer configuration, tube filling speed, packaging format, automation level and required accessories. HONEMIX provides an itemized equipment proposal based on your production requirements.
Build the Line Around Your Actual Production
Tell us what products you plan to produce and your target production capacity. We’ll recommend a tailored equipment configuration for your production line.
