Gel Production Process
From Raw Materials to Finished Gel Products

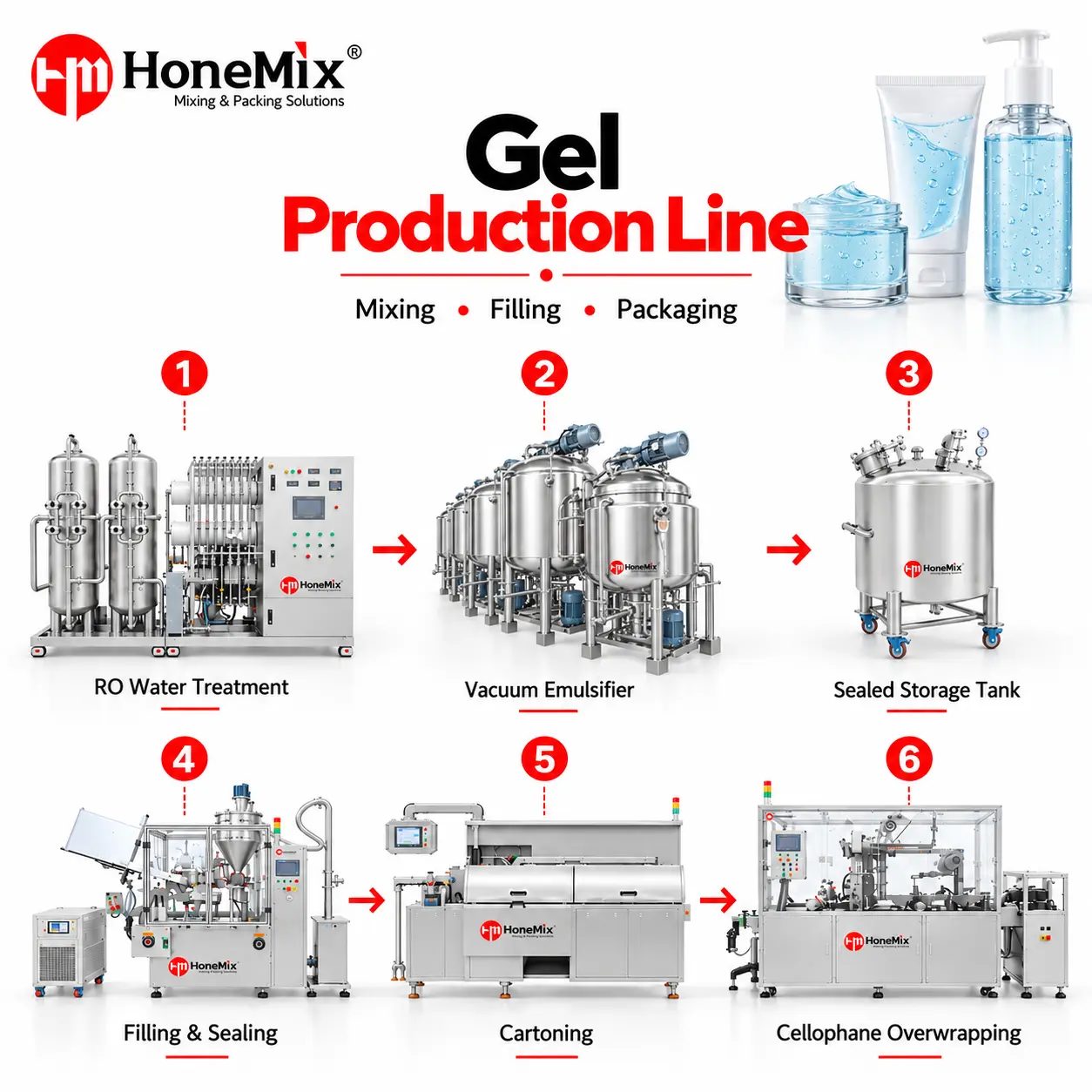

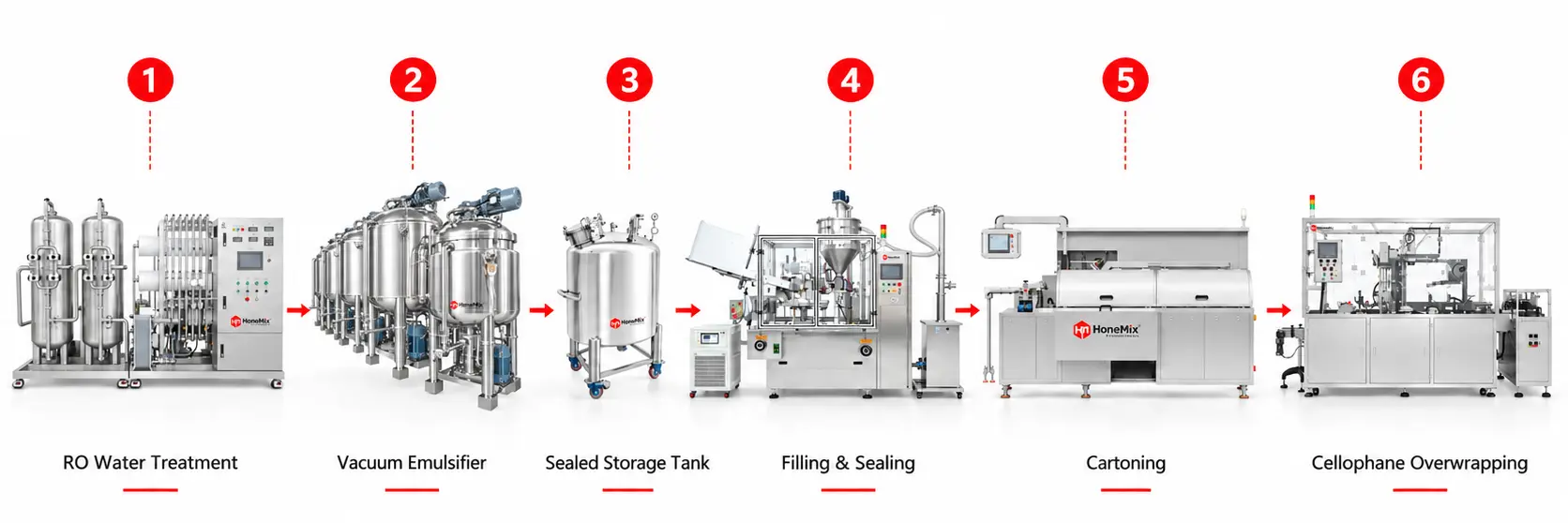

A typical gel production line combines water preparation, controlled mixing, optional bulk storage and automatic packaging.
1. Water Preparation (①)
HRO Reverse Osmosis Water Treatment
2. Gel Mixing & Processing (②)
HCM-CF Customized Vacuum Gel Mixer
Alternative: HHM-C or HVE-BLT, depending on formulation.
3. Optional Bulk Storage (③)
HST-SLP Sealed Storage Tank
4. Gel Filling & Packaging (④)
AFM-LP Automatic Bottle Filling Machine or HY-A400 Automatic Tube Filling & Sealing Machine or AFM-CR Rotary Jar Filling & Capping Machine
5. Optional Secondary Packaging (⑤)
Labeling · Cartoning · Overwrapping
Transfer pumps, piping, feeding systems and other accessories are selected according to gel viscosity, factory layout and the agreed production configuration.
Gel Production Line Process Equipment
Gel Mixing & Processing
Engineered for Consistent Gel Quality
HONEMIX gel mixing systems combine controlled dispersion, adjustable agitation, temperature control and vacuum deaeration to manage gel formation, viscosity and product appearance.
1. POLYMER DISPERSION
Uniform Ingredient Distribution
The HCM-CF's optional disperser or HHM-C's bottom homogenizer helps disperse thickening agents evenly, reducing powder lumps before gel viscosity develops.
2. GEL HYDRATION
Consistent Gel Formation
Paddle or anchor agitation maintains material circulation during hydration, while jacketed heating and cooling provide temperature control where required by the formulation.
3. CONTROLLED MIXING
Stable Viscosity & Texture
Adjustable anchor or wall-scraping agitation maintains uniform mixing as viscosity increases, without unnecessary high shear that could affect sensitive gel structures.
4. VACUUM DEAERATION
Fewer Bubbles, Cleaner Appearance
The HCM-CF vacuum system removes entrained air during processing, helping produce smoother, clearer gels ready for bottle, tube or jar filling.
Gel Making Machines
Select the Right Mixer for Your Formulation
HONEMIX offers different gel manufacturing equipment configurations for water-based, cleansing and emulsified gel products.
HCM-CF Customized Vacuum Gel Mixer
Recommended for Transparent Water-Based Gels
Paddle, anchor or wall-scraping agitation can be selected according to gel viscosity, with homogenizing available when required. For transparent gels, controlled mixing during final thickening helps limit air entrapment and unwanted viscosity changes.
Custom Agitation · Vacuum Deaeration · Gel Processing
HHM-C Sanitary Homogenizer Mixer
100–5,000 L | Low-to-Medium-Viscosity Gels
Suitable for selected cleansing gels and fluid gel formulations requiring ingredient dispersion, mixing and temperature control. Homogenizing is applied according to the formulation rather than continuously throughout processing.
Sanitary Mixing · Flexible Batch Capacity · Temperature Control
HVE-BLT Vacuum Emulsifying Mixer
50–500 L | Emulsified Gels & Gel Creams
Designed for formulations combining oil and water phases that require high-shear emulsification, vacuum processing and controlled cooling. Hydraulic lifting provides convenient access for cleaning and product changeovers.
High-Shear Emulsification · Vacuum Processing · Hydraulic Lifting
Gel Filling & Packaging Machines
Packaging Equipment Matched to Your Gel
Finished gel viscosity, flow behavior and container design determine the most suitable filling technology and handling system.
AFM-LP Automatic Gel Bottle Filling Line
For Pump Bottles & Standard Cosmetic Bottles
Servo piston filling for pumpable gels, with optional bottle feeding, capping, labeling and collection equipment.
HY-A400 Automatic Tube Filling & Sealing Machine
For Plastic, Laminated & Aluminum Tubes
Automatic tube filling, sealing and coding for facial gels, skincare gels and other compatible semi-viscous products.
AFM-CR Automatic Jar Filling & Capping Machine
For Cosmetic Jars & Wide-Mouth Containers
Rotary filling and capping with integrated container handling, suitable for thicker cosmetic gels supplied in jars.
Additional Packaging Equipment
ALM-R — Automatic Round Bottle Labeling
HY-ZHJ-120 — Automatic Cartoning
HY-330A — Automatic Carton Overwrapping
Packaging equipment can be supplied individually or integrated into a coordinated production line.
Gel properties can change during hydration, holding and transfer. HONEMIX considers the complete production process when selecting equipment.
Gel Viscosity & Flow
Agitation, discharge pumps and filling systems are selected according to the finished gel's viscosity and flow characteristics.
Product Appearance
Transparent gels may require controlled powder dispersion and vacuum deaeration to limit visible lumps and air bubbles.
Batch Capacity & Packaging Output
Mixer working volume, transfer capacity and filling speed are coordinated to suit the intended production schedule.
Product Changeover & Cleaning
Contact materials, vessel access, piping arrangement and cleaning provisions are specified according to the agreed production requirements.
Project Engineering & Support
HONEMIX manufactures and coordinates mixing, storage, filling and packaging machinery for new gel production facilities and existing factory upgrades.
1. Equipment Configuration
A proposed machine combination based on your gel formula, working batch size and packaging requirements.
2. Engineering Coordination
Equipment layouts, dimensions, utility connections and material-transfer arrangements for the approved production line.
Machine operation checks and factory acceptance testing according to the agreed project scope, with sample trials where arranged.
4. Installation & Commissioning Guidance
Technical documentation and installation support based on the equipment supplied and project agreement.
Frequently Asked Questions
1. What machines are required for a gel production line?
A typical gel production line includes a suitable mixing vessel, optional vacuum deaeration, material transfer equipment and a filling machine. Water treatment, buffer storage, labeling and secondary packaging are added according to the product and factory requirements.
2. Does transparent gel production require high-shear homogenizing?
Not always. Some thickeners need effective dispersion during initial processing, but prolonged high shear after gel formation may affect their viscosity or structure. Mixing conditions should be matched to the thickening system.
3. Can one gel production line fill both bottles and tubes?
Yes. A compatible gel processing system can supply separate bottle and tube filling machines. Each packaging section requires suitable dosing, transfer and container-handling equipment.
4. Is vacuum processing necessary for every gel?
No. Vacuum deaeration is particularly useful when air bubbles affect gel clarity, appearance or filling quality. The need for vacuum depends on the formulation and processing conditions.
The most useful details are gel type, thickening system, batch size, finished viscosity, filling volume, container type and required packaging output. Existing process details or product samples can help refine equipment selection.
