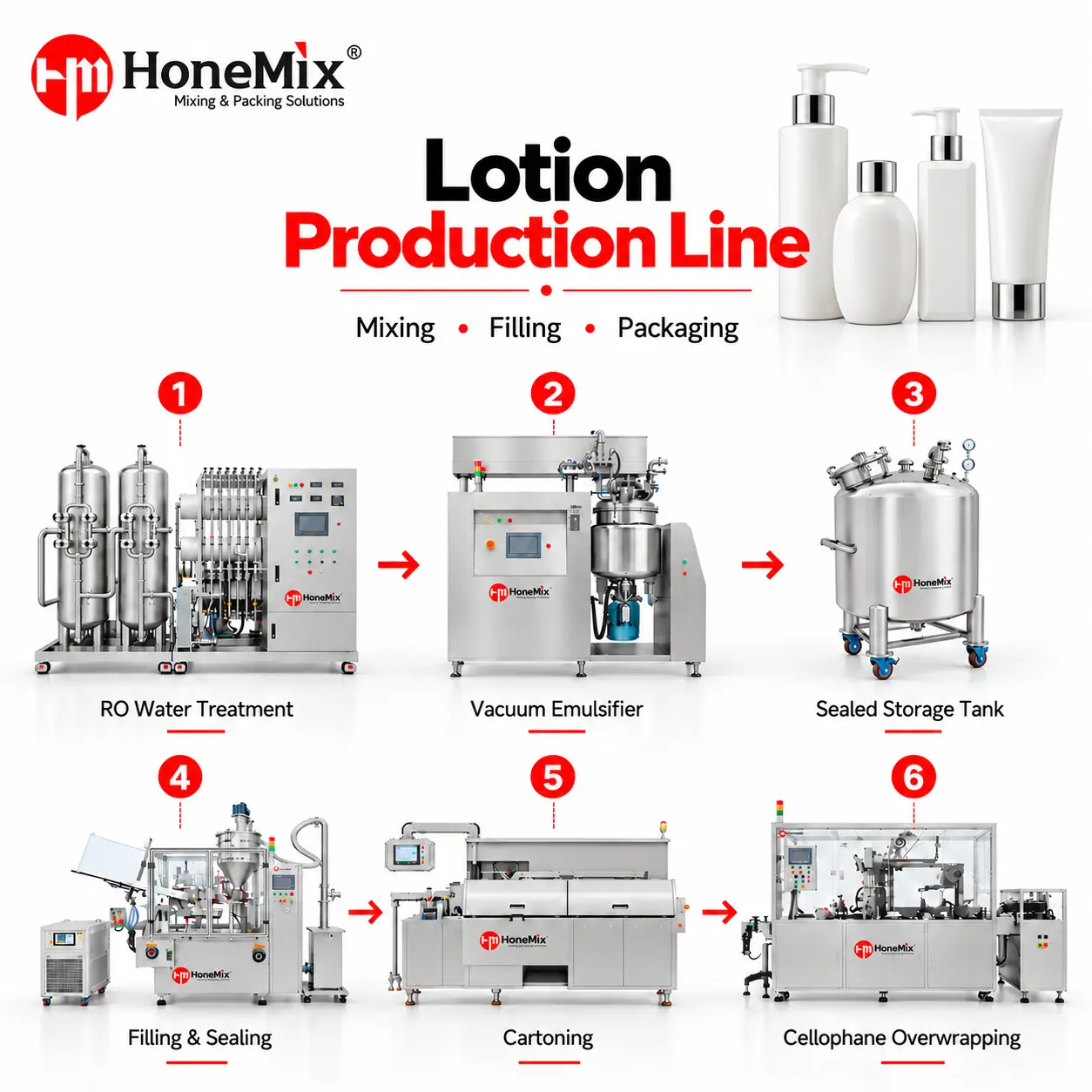

Lotion Production Process
HONEMIX combines the selected lotion making machine with suitable upstream and downstream equipment. A typical lotion production line includes five connected stages, from water preparation to final packaging:
1. Water Preparation （①）
HRO Reverse Osmosis Water Treatment → Purified Process Water
2. Lotion Making （②）
HVE-BFT Vacuum Emulsifying Mixer OR HHM-C Sanitary Homogenizer Mixer
3. Bulk Storage （③）
Finished Bulk Lotion → HST-SLP Sealed Storage Tank → Filling
4. Filling & Sealing （④）
AFM-LP Automatic Bottle Filling OR HY-A400 Automatic Tube Filling & Sealing
5. Optional Packaging （⑤⑥）
HY-ZHJ-120 Cartoning → HY-330A Overwrapping
Available Configurations
Complete lotion manufacturing and packaging lines
Lotion mixing and storage systems
Automatic bottle or tube packaging sections
Supporting pumps, phase-preparation vessels, piping, conveyors and other accessories are selected according to the agreed equipment configuration.

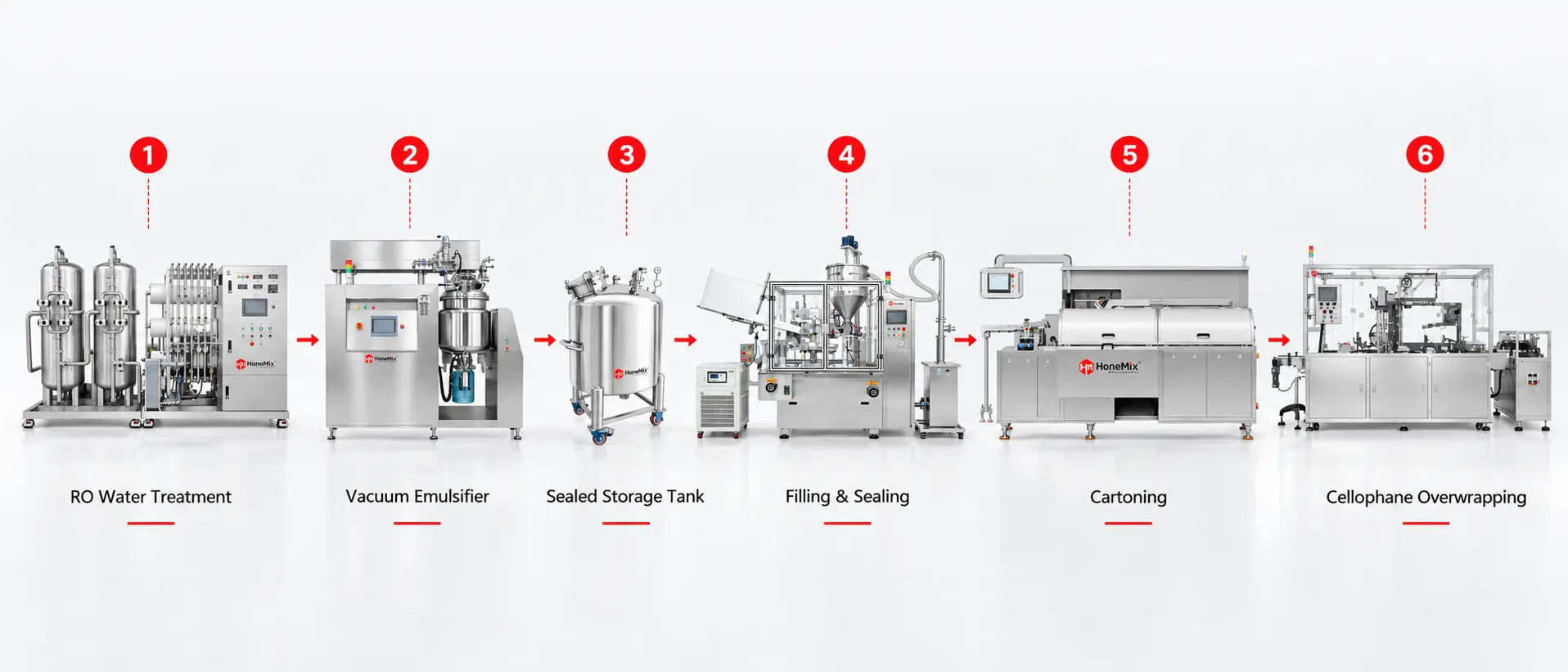

Lotion Production Line Process Equipment
Choose the Right Lotion Making Machine
HONEMIX offers two main processing options for lotion manufacturing. Select the system that matches your formula and production requirements.

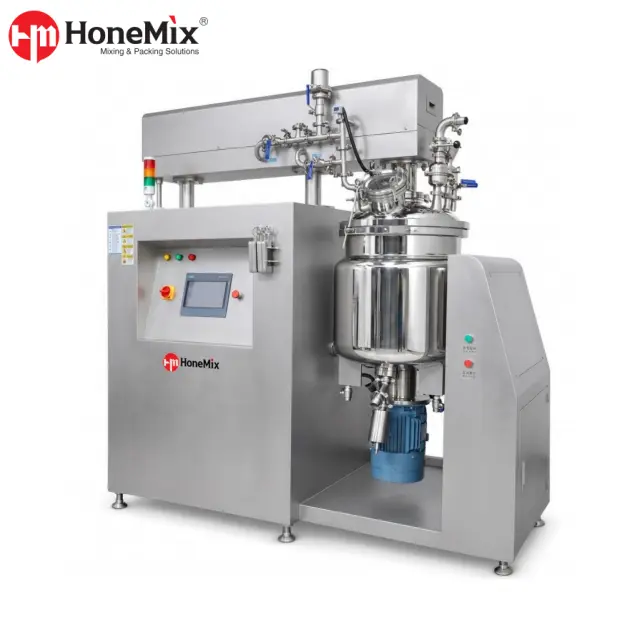

Vacuum Emulsifying Mixer
Vacuum Processing
Designed for oil-water lotions, the HVE-BFT combines high-shear emulsification, vacuum deaeration, wall-scraping mixing and jacketed temperature control.
Hydraulic lifting and PLC/HMI control support flexible batch production.
High-Shear Emulsification · Vacuum Deaeration · PLC/HMI Control
Sanitary Homogenizer Mixer
Atmospheric Processing
Designed for low-to-medium-viscosity lotions, the HHM-C combines wall-scraping mixing, bottom homogenization and jacketed temperature control.
SS316L contact parts, flexible control and discharge options support efficient batch production.
Sanitary Mixing · Bottom Homogenizer · Flexible Discharge
For formulations requiring both oil-water emulsification and vacuum air removal, the HVE-BFT is the preferred option. Atmospheric processing is selected when the formulation permits it.
Equipment Included in The Lotion Manufacturing Line
Reverse Osmosis Water Treatment
Provides purified process water for lotion manufacturing. Single-pass RO, double-pass RO and additional treatment options are available according to water quality requirements.
Sealed Storage Tank
A 100–1,000 L storage tank series for intermediate lotion holding before filling. Tank capacity, material grade, outlet connections and mobile configurations can be selected for the project.
Automatic Bottle Filling
A servo piston filling line for lotions packed in bottles. Available with 2, 4, 6 or 8 filling heads, with automatic capping, labeling and conveyor integration options.
Automatic Tube Filling & Sealing
An automatic tube packaging machine with a reference speed of 50–60 tubes/min. Suitable for plastic, laminated and aluminum tubes with material-specific sealing equipment.
Automatic Cartoning
An automatic cartoner for compatible lotion bottles or sealed tubes. Product feeding and carton closing arrangements are configured for the selected packaging format.
Automatic Overwrapping
An optional packaging machine for applying heat-sealable BOPP film to finished retail cartons, suitable for compatible lotion packaging formats.
Not every project requires every machine. The final configuration should match the actual product, container and required automation level.
Equipment Supply Options
HONEMIX supplies individual machines and integrated equipment systems for new lotion production facilities and existing factory upgrades.
Complete Production Lines
Coordinated lotion mixing, storage, filling and packaging equipment for new manufacturing facilities.
Individual Machines & Upgrades
Add or replace mixers, storage tanks, filling machines or packaging equipment in an existing production line.
Bottle & Tube Packaging Lines
Automatic bottle filling or tube filling and sealing systems, with optional cartoning and overwrapping equipment.
Equipment can be supplied individually or as a coordinated production system.
Project Engineering & Support
HONEMIX provides engineering support for lotion production line projects, from equipment selection and layout planning to factory testing and installation guidance.
1. Equipment Configuration
Machine recommendations, customized configurations and detailed quotations based on your production requirements.
2. Line Layout & Integration
Equipment layout drawings, connection planning and utility requirements for your production facility.
3. Factory Testing & Inspection
Machine demonstrations, functional testing and pre-shipment inspections based on agreed requirements.
4. Installation & Commissioning
Technical documentation, installation guidance and commissioning support according to the project scope.
Frequently Asked Questions
1. Can HONEMIX connect new equipment with my existing machines?
Yes. HONEMIX can review your existing equipment specifications, transfer connections, conveyor arrangement and control requirements to propose a compatible configuration.
2. Are all the machines required for every lotion line?
No. The final equipment list depends on your existing facilities and intended packaging. Additional equipment such as phase-preparation tanks, pumps, capping machines and labeling machines can be included where required.
3. Can I request a layout and quotation before placing an order?
Yes. Share your product, target capacity, packaging details and available factory space. HONEMIX can prepare a preliminary equipment proposal and quotation for review.
Build the Line Around Your Actual Production
Tell us what lotion you plan to produce and your target capacity. We’ll recommend a practical equipment configuration for your production line.
